ODA Trial Version

More about ODA trial version

• Trial version overview

  Trial versions are available for the following products:

  • Core Package

    • 绘图（Drawings）
    • IFC
    • 建筑（Architecture）
    • PRC

  • 战略互联团队

    • 土木（Civil）
    • BimRv
    • BimNv
    • 机械（Mechanical）

  • .Net and Java Wrappers

    • Drawings for Java
    • Drawings.NET
    • PRC.NET
    • Architecture.NET

  ODA software supports a wide list of platforms, but trial versions are available only for the Win64 platform as DLL configurations for Visual Studio 2019 (vc16).

  Trial and full version archives are updated and released at the same time.
  Each trial version runs on one computer only and is valid for 60 days.
  During the trial, users have full access to the documentation and support forum (login required).
  Trial versions require a subscription account and license activation.

• Downloading trial archives

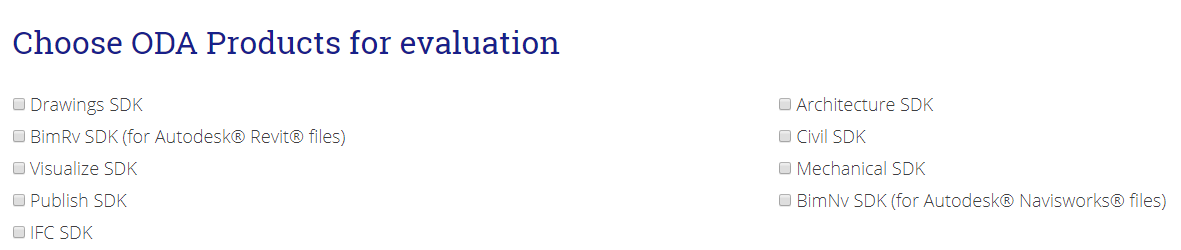

  • When filling in the subscription application form, specify the list of ODA products you want to evaluate.

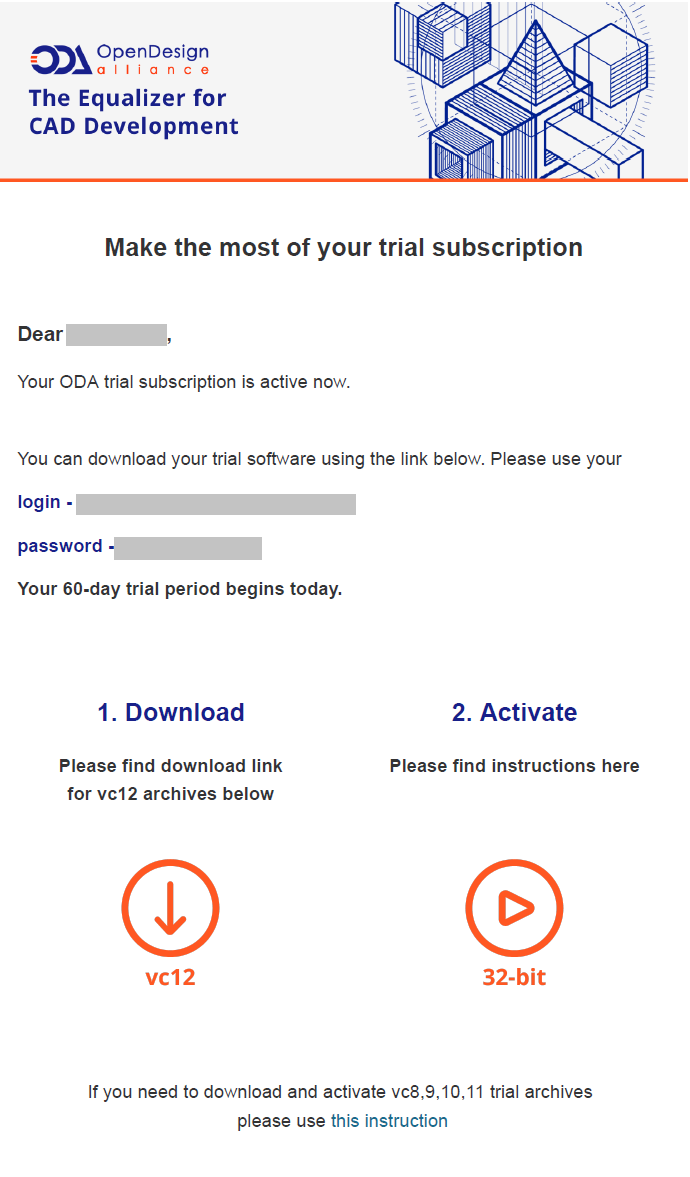

  • After approving your e-mail address, you'll receive your credentials and the link for downloading an archive that contains all the trial ODA products you requested.

  • Follow this link to download and unpack the archive for Microsoft Visual Studio 2019 (vc16). Now you need to activate your trial version (see the next section for details).

• Activating trial archives

  Go to exe > vc16_amd64dll and open TrialActivator.

  Enter your credentials provided via email, wait 3 seconds and that’s it!



  Now you can open sample applications
  and start using ODA SDKs.

• Running samples

  Sample applications are pre-built in the exe<configuration> folder and can be run immediately after activating the trial versions. At the command prompt, run any sample application without argumentsto display information about its usage.

  To use a sample, enter the sample application executable filename followed by arguments, for example:

  OdCopyEx test.dxb test_copy.dwg

  Note

  If you run samples without a valid license key, errors display and the command prompt closes

  The following samples are recommended as a starting point for evaluating ODA software. For a full list of samples and their descriptions, go to: this page (login required).

  Converting a Drawing File to a New Type and Version

  OdCopyEx reads a drawing file and saves it as a new .dwg, .dxf, or .dxb file. It illustrates:

  • ODA platform initialization
  • File loading into a database
  • Auditing of a loaded database
  • Saving a database to a specified file version and type
  • Assert function customization

  See the video for an OdCopyEx sample overview

  Reading a Drawing File

  OdReadEx reads a drawing file and displays all information about the entities and object types located in the file. It illustrates:

  • ODA platform initialization
  • File loading, including password-protected files
  • Parsing of a loaded database
  • Switching on entity/object types using protocol extensions
  • Accessing various object properties
  • Getting entity geometry via vectorization
  • Assert function customization

  See the video for an OdReadEx sample application overview

  Creating a Drawing File

  OdWriteEx creates a new drawing, populates it with various entities, and saves to a file. It illustrates:

  • Creating various entities and objects
  • Freezing local time to create drawings with the same creation/modification time (useful for comparing created drawings while testing)
  • Providing a bitmap device for drawing preview creation
  • Using a custom AuditInfo object to save audit messages to a file
  • Using support files (fonts, etc.) from a third-party, if available
  • Saving a password-protected file
  • Assert function customization

  See the video for an OdWriteEx sample application overview

• Building ODA sample applications

  Overview of ODA Software Contents

  The following obligatory folders are created when the trial archive is unpacked:

  • 组件
  • Exe
  • Platforms
  • Kernel
  • lib
  • ThirdParty

  The following optional folders may be created depending on the projects selected for trial evaluation:

  • 绘图（Drawings）
  • BimNv
  • 可视化（Visualize）
  • BimRv
  • IFC
  • and so on

  Building the Samples

  1. In Microsoft Visual Studio, open a sample application solution file located in the Platforms\<configuration> folder. These solution files have next structure:<Product>_vc15dll_ex.sln
  2. Build the solution to generate binary executable files and libraries for the samples. (Press F7 or choose Build > Build Solution.

     ---

     If the build is successful, binary output is placed in the exe\<configuration> folder)
  3. Modify or add your own code to the source code located in the Examples folder to further evaluate ODA software.

• Documentation, forum & support

  • ODA platform documentation online
  • ODA Trial forum thread
  • Main ODA
    forum

  about technical issues and general ODA software usage
